Nanoalps® System SAFE is an environmentally-friendly, non-toxic polymer additive which creates water-impermeable layers, seals and also rehabilitates contaminated grounds. It is used with clay mineral binding agents as well as reduced grain-size minerals and recycled raw materials.
Properties
-
The properties of System SAFE
- Nanoalps® System SAFE – perfect for waterproofing landfill sites
The Nanoalps® System SAFE can form an impermeable layer which is much thinner than traditional clay waterproofing but equally as efficient. This ensures excellent savings in terms of both the cost and the transportation of raw materials.
-
Properties overview
- Improved elasticity and high levels of waterproofing
- Minimisation of dry-splitting through a reduction in the swellability
- High level of chemical and biological stability
- Good processability
- Cost-savings through a reduction in the required layer depth
Application areas
Application areas of System SAFE
Nanoalps® System SAFE can be used in all areas where a high level of impermeability and waterproofing is required, e.g.:
- Landfill sites
- River and sea dykes
- Dams and embankments
- Water reservoirs and water-storage facilities
- Near to rivers and protected water and nature areas
Technology
-
Improved material stability
Load-tests show an improvement in material stability.
- Without Nanoalps® System SAFE
Without the use of the polymer the material remains brittle and long tears appear.
- With Nanoalps® System SAFE
With Nanoalps® System SAFE the load is spread out more evenly, so that the wearing-down of material is minimised.
-
Technical properties
Strength:
Uni-axial compressive strength of 1.0 N/mm² - 5.0 N/mm² adjustable
Resistance to frost:
Depends on requirements and material
Rate of water permeability:
k-values of up to 10-11 m/s
Nanoalps® System SAFE - strengthening of the mineral course layer at a high rate of sealing.Download technical sheet
Click here or on the image to download the Nanoalps® System SOIL technical sheet.
Build-up
Reduction of construction costs and material costs
Nanoalps® System SAFE enables a reduction in layer depth and construction costs whilst improving the rate of impermeability.
To find out more about the cost and the solutions best suited to your needs, please contact:
info(at)nanoalps.com or call us at +39 0474 544 500.
-
- Build-up with Nanoalps® System SAFE
Through the use of Nanoalps® System SAFE a higher level of impermeability is achieved and the depth of the mineral layer can be reduced to a large extent.
- Recultivation layer
- Geomembrane 400 g/m²
- 30 cm drainage layer
- PEHD foil 1,000 g/m²
- 20 cm mineral layer using Nanoalps® System SAFE
- 20-40 cm gasdrainage and compensation level
-
- Build-up without Nanoalps® System SAFE
Without the sealing characteristics of the polymer additive the layer would otherwise have to be drastically increased and this results in a lower level of chemical stability.
- Recultivation layer
- Geomembrane 400 g/m²
- 30 cm drainage layer
- PEHD foil 1,000 g/m²
- 100 cm mineral layer
- 20-40 cm gasdrainage and compensation level
Application instructions
Application instructions
Nanoalps® System SAFE is installed by the Mixed-in-Plant procedure
- 1. Landfill: Initial situation
- 2. Production of material with the addition of Nanoalps® System SAFE in the mixing plant

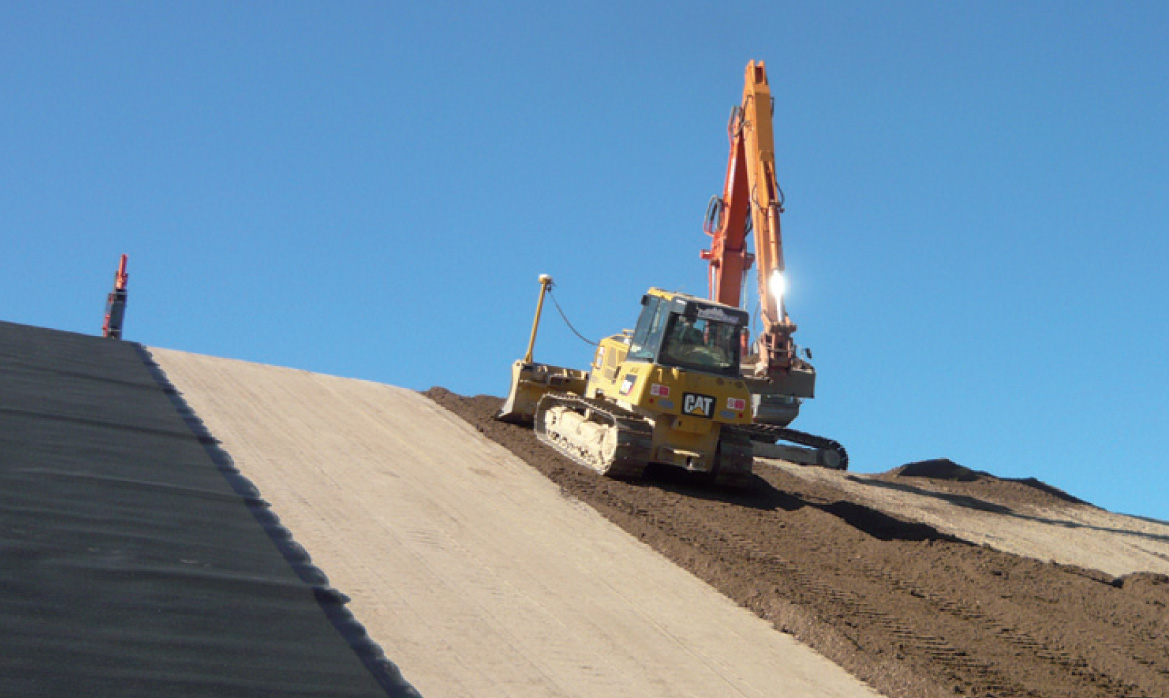

- 3. Laying of mixture with special machinery
- 4. Compression of ground
- 5. Final landfill covering
- 6. Landfill: Final situation
